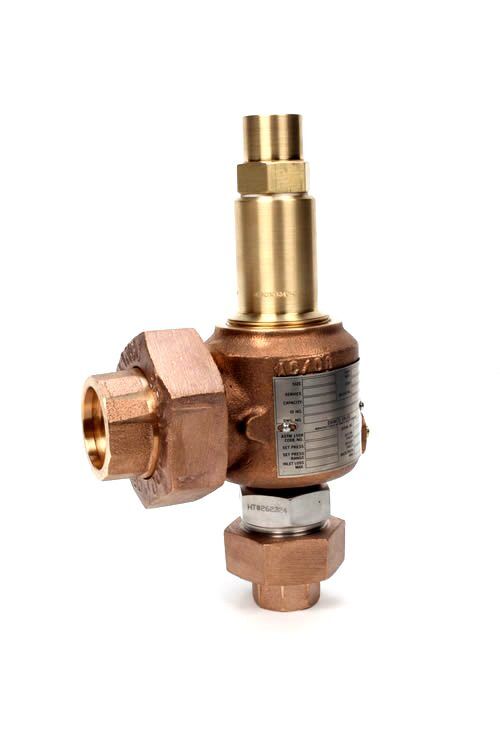

Danco DL48CUU

Model Descriptions:

Shipboard air compressor pressure relief valve Danco DL48CUU drawing
Drawing (PDF)

Shipboard air compressor pressure relief valve for liquid drain application. Connections are 1/2″ inlet and 1″ outlet union end silver braze. The valve is in full conformance with MIL-V-22549 and features bronze construction, a stem guided with soft-seat design and a threaded cap. Rated to 400 PSIG.

Features:

  • Danco Valves are the industry’s premier mil-spec relief valves. The valves are quick acting, non-chattering and smooth guiding. They also feature optimal sealing tightness with a unique soft-seat design.
  • Shock approved in accordance with Mil-S-901C. Vibration approved in accordance with Mil-Std.-167-1.
  • We warranty materials and workmanship against defects for two years after the date of installation. This comprehensive warranty ensures complete manufacturer support.
  • All valves are wire sealed to prevent unauthorized tampering.
  • For capacity information specific to your application, please contact us.

Standard Materials:

  • Body: Bronze/ASTM B61
  • Bonnet & Cap: Naval Brass/ASTM B21
  • Seat, Disc & Stem: CRES 304/ASTM A276
  • Spring: Music wire/ASTM A228

Weights & Dimensions:

  • Overall Height: 7.25″
  • Center-to-Inlet Face: 3.56″
  • Center-to-Outlet Face: 3.25″
  • Unit Weight: 7 LBS.

Note: Dimensions include Union Nuts & Tailpieces

DANCO Valve Identification System:

Shipboard air compressor pressure relief valve Danco DL48CUU chart
