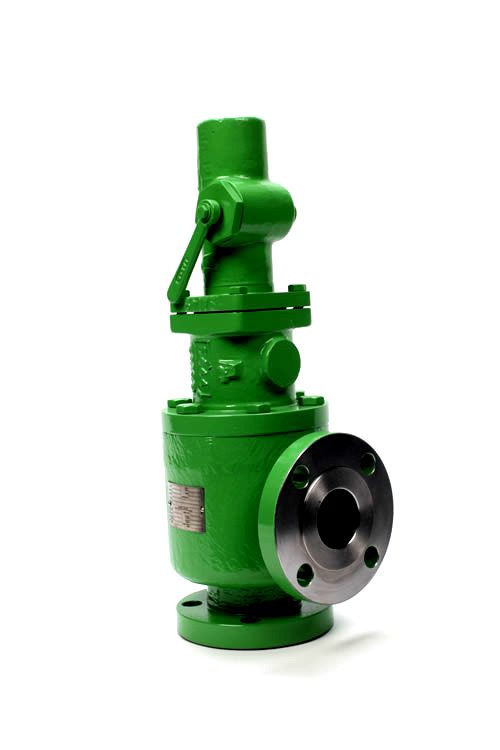

Danco Steel Enclosed Spring Semi-Nozzle Pressure Relief Valve (Sizes ¼” – 8”)

Home/Military Spec Valves/Danco Pressure Relief Valves/Steel Semi-Nozzle Valves/Danco Steel Enclosed Spring Semi-Nozzle Pressure Relief Valve (Sizes ¼” – 8”)

Danco Steel Enclosed Spring Semi-Nozzle Pressure Relief Valve (Sizes ¼” – 8”)

Model Descriptions:

Drawing (PDF)

Shipboard pressure relief valves in full conformance with the applicable ASTM and military specifications. Sizes 1/4″ through 8″. Steel construction with flanged connections, enclosed spring bonnet and semi-nozzle design.

Applications:

  • ASTM F1508
  • Mil-V-24332 Liquid (latest revision)
  • Mil-V-22549 Air/Gas, (latest revision)
  • Mil-V-20065D Steam (Type II, Composition D)

Features:

  • Danco Valves are the industry’s premier mil-spec relief valves. The valves are quick acting, non-chattering and smooth guiding. They also feature optimal sealing tightness with a unique soft or hard seat design.
  • We warranty materials and workmanship against defects for two years after the date of installation. This comprehensive warranty ensures complete manufacturer support.
  • All valves are wire sealed to prevent unauthorized tampering.
  • For capacity information specific to your application, please contact us.

Standard Materials:

  • Body, Bonnet & Lever Housing: Steel/WCB ASTM A216
  • Seat: CRES/CF8M ASTM A351
  • Stem Assembly: CRES/316 ASTM A276
  • Spring: CRES/316 ASTM A313
  • Disc Assembly:
    • Disc: CRES/CF8M ASTM A351
    • Disc Insert: Teflon®/AMS 3660
    • Disc Insert Retainer: CRES/304 ASTM A276

Optional Materials:

Valve materials can be customized for your specific application.

Weights & Dimensions:

Alternative flange ratings are available.
Center-to-face dimensions can be modified to meet your specific requirements.


Create a Semi-Nozzle Part Number

 WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Categories: , ,

Request A Quote

Description

CKCNN01JCC, CKCNN01JCC-CD60-0011-1, CKCNN01SCC-SG, CKCNN01SCC-SG-CD60-0017-1, CKCNN02JCC, CKCNN03JCC, CKCNN04JCC, CKCNN04JCC, CKCNN04LCC, CKCNN04SDD, CKCNN05JCC, CKCNN05JCC, CKCNN05JDD, CKCNN06JEE, CKCNN06SDD, CKCNN08CJJ, CKCNN08JCC, CKCNN08JCC-SP-CD60-0012-1, CKCNN08JCC-SP-CD60-0012-1, CKCNN08JCC-SP-CD60-0012-1, CKCNN08XCC, CKCPN03JCC, CKCPN08CKM, CKCRN08JCC, 88A000607, 88A010186, 88A000089, 88A000219, 88A100106X, , 88A060278X, 4820-01-397-5746, 4820-01-554-5440, 4820-01-131-7648, 4820-01-063-3819, 4820-01-397-5398, 4820-01-475-2657, 4820-01-529-4774, 4820-01-584-5409, 4820-01-071-8814, 4820-01-536-5397
