Model Descriptions:

Drawing (PDF)

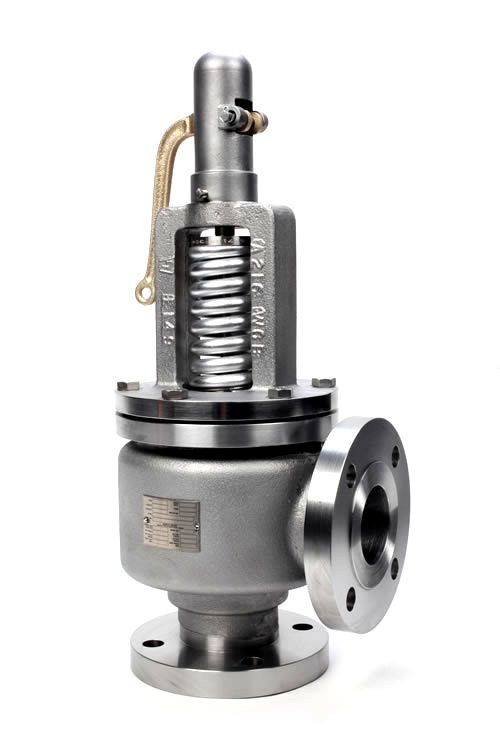

Shipboard pressure relief valves in full conformance with the applicable ASTM and military specifications. Sizes 1/4″ through 8″. Stainless steel construction with flanged connections, exposed spring bonnet and semi-nozzle design.

Applications:

  • ASTM F1508
  • Mil-V-20065D Steam (Revision D, Type I, Compositions A, B, C & D)

Features:

  • Danco Valves are the industry’s premier mil-spec relief valves. The valves are quick acting, non-chattering and smooth guiding. They also feature optimal sealing tightness with a unique soft or hard seat design.
  • We warranty materials and workmanship against defects for two years after the date of installation. This comprehensive warranty ensures complete manufacturer support.
  • All valves are wire sealed to prevent unauthorized tampering.
  • For capacity information specific to your application, please contact us.

Standard Materials:

  • Body, Bonnet & Lever Housing: CRES/CF8M ASTM A351
  • Seat: CRES/CF8M ASTM A351
  • Stem Assembly: CRES/316 ASTM A276
  • Spring: Chrome Vanadium ASTM A231
  • Disc Assembly:
    • Disc: CRES/CF8M ASTM A351

Optional Materials:

Valve materials can be customized for your specific application.

Weights & Dimensions:

Alternative flange ratings are available.
Center-to-face dimensions can be modified to meet your specific requirements.


Create a Semi-Nozzle Part Number
