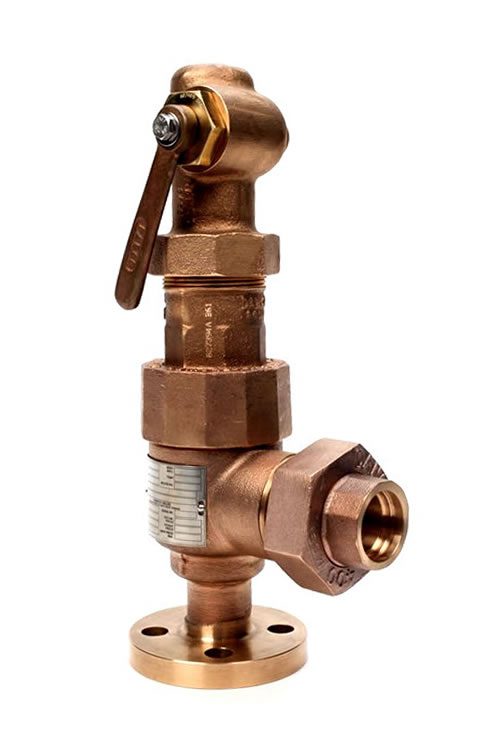

Danco Bronze Semi-Nozzle Pressure Relief Valve with Flanged by Union End Silver Braze Connections (Sizes ¼” – 2”)

Model Descriptions:

Danco Bronze Semi-Nozzle Pressure Relief Valve schematic
Drawing (PDF)

Shipboard pressure relief valves in full conformance with the applicable ASTM and military specifications. Sizes 1/4″ through 2″. Flanged by union end silver braze connections, bronze construction with semi-nozzle design and threaded bonnet.


  • ASTM F1508
  • Mil-V-24332 Liquid (latest revision)
  • Mil-V-22549 Air/Gas, (latest revision)
  • Mil-V-20065 Steam (revision C, Type A-2, Class C)


  • Danco Valves are the industry’s premier mil-spec relief valves. The valves are quick acting, non-chattering and smooth guiding. They also feature optimal sealing tightness with a unique soft-seat design.
  • We warranty materials and workmanship against defects for two years after the date of installation. This comprehensive warranty ensures complete manufacturer support.
  • All valves are wire-sealed to prevent unauthorized tampering.
  • For capacity information specific to your application, please contact us.

Standard Materials:

  • Body, Bonnet & Lever Housing: Bronze/ASTM B61
  • Seat: Monel/QQ-N-288/ASTM A494
  • Stem Assembly: CRES/316 ASTM A276
  • Spring: CRES/316 ASTM A313
  • Disc Assembly:
    • Disc: Monel, QQ-N-288/ASTM A494
    • Disc Insert: Teflon®/AMS 3660
    • Disc Insert Retainer: Monel, QQ-N-281

Optional Materials:

Valve materials can be customized for your specific application or in accordance with specification requirements.

End Connections, Weights & Dimensions:

Danco Bronze Semi-Nozzle Pressure Relief Valve schematic

The flange dimensions noted above are for Mil-PRF-20042 Class 150, Mil-PRF-20042 Class 250 and ASME B16.24 Class 150 and 300 flanges. Union end sil-braze dimensions are in conformance with ASTM F1508, Class 400 applications. Center-to-face dimensions can be customized to meet your specific requirements.

Create a Semi-Nozzle Part Number
